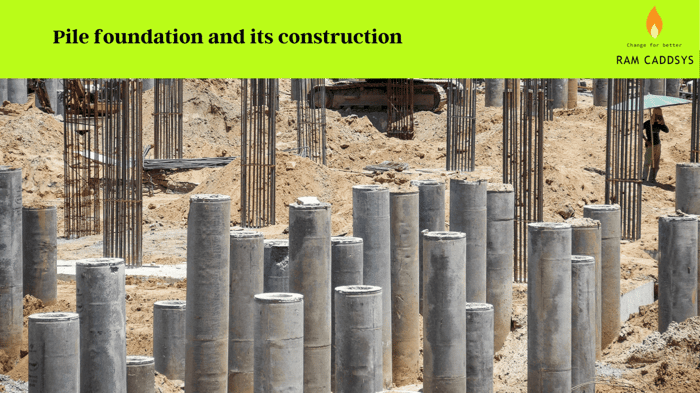

Pile foundation construction is a specialized deep-foundation method used to support heavy structures that cannot be carried on shallow foundations. The method uses long, slender columns — piles — driven or installed deep into the ground to transfer structural weight down to deeper, stronger layers of soil or rock. This article covers the main pile types, the construction sequence, and how these foundations are designed.
Types of pile foundations
The type of pile used depends on soil conditions, structural requirements, and construction method. The most common types are:
1. Timber pile foundations
Wooden piles used in areas with low-bearing-capacity soil.
2. Concrete pile foundations
Precast or cast-in-place concrete piles used in areas with high-bearing-capacity soil.
3. Steel pile foundations
Steel pipes or H-sections used in areas with corrosive soil conditions.
4. Composite pile foundations
A combination of two or more materials, such as concrete and steel, used to overcome the limitations of individual materials.
| Pile Type | Soil Suitability |
|---|---|
| Timber Pile Foundations | Areas with low-bearing-capacity soil |
| Concrete Pile Foundations | Areas with high-bearing-capacity soil |
| Steel Pile Foundations | Areas with corrosive soil conditions |
| Composite Pile Foundations | Soil conditions requiring a combination of materials |
Construction of pile foundations
The construction of pile foundations follows these steps:
1. Site preparation
The site is cleared of vegetation, debris, and other obstructions that could interfere with pile installation.
2. Excavation
The area where piles are to be installed is excavated to the required depth, deep enough for the piles to reach the stronger soil layers below the weak surface layer.
3. Pile installation
The installation method depends on the pile type. Timber piles are typically driven into the ground with a pile driver, while concrete and steel piles are usually installed with a drilling machine.
4. Pile testing
Installed piles are tested to confirm they can support the design load, using static load tests, dynamic load tests, or integrity tests.
5. Pile cap construction
Once piles are tested and accepted, a pile cap — reinforced or precast concrete — is constructed on top of them to distribute the structural load evenly across the group.
6. Structural construction
With the pile cap in place, the superstructure is built on top using standard construction methods.
Advantages of pile foundations
- High load capacity — piles can support heavier loads than shallow foundations.
- Suitable for varied soil types, including weak and compressible soils.
- Lower environmental disturbance — less excavation and soil transport than comparable deep-foundation alternatives.
- Long service life, often decades without major maintenance.
Disadvantages of pile foundations
- Higher cost than shallow foundations, driven by materials and specialized equipment.
- More demanding construction, requiring specialized equipment and experienced crews.
- Risk of failure from improper installation, soil movement, or corrosion of steel piles.
Designing pile capacity and settlement to code
Getting pile capacity and group behavior right depends on modeling how the pile interacts with the surrounding soil — skin friction, end bearing, group effects, and settlement all shift with soil layering and groundwater conditions that a hand calculation only approximates.
OPTUM G3 models this soil-pile interaction with finite element Limit Analysis, letting engineers verify axial pile capacity and group behavior under real soil conditions rather than relying on an empirical bearing formula alone. PLAXIS is a complementary option in the same geotechnical workflow for staged construction and time-dependent settlement checks. RAM CADDSYS implements and supports both as your regional partner, and RAM CADDSYS Campus certified courses include a free software license.
The tool for this
3D geotechnical finite-element analysis.
Compute bearing capacity by Limit Analysis and settlements by elastoplastic analysis, with automatic adaptive meshing.
FAQs
What is a pile foundation?
A type of deep foundation using long, slender columns to transfer structural weight to deeper, stronger layers of soil or rock.
When is pile foundation construction necessary?
When shallow foundations cannot support heavy structures, or when the surface soil is too weak.
What are the common types of pile foundations?
Timber, concrete, steel, and composite pile foundations.
How are concrete piles installed?
Typically with a drilling machine, after the site has been excavated to the required depth.
What is the purpose of a pile cap?
It sits on top of the piles and distributes the structural load evenly across them.
What are the primary advantages of pile foundations?
High load capacity, suitability across soil types, and a long service life with lower environmental disturbance.
