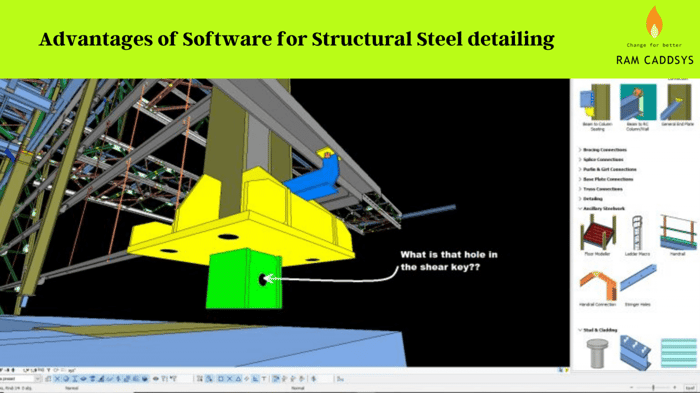

As building structures grow more complex and skilled detailing labor stays scarce, manual drafting is no longer a reliable path to accurate shop drawings. Structural steel detailing software addresses this directly — it models the steel structure once and generates the fabrication, arrangement, and assembly drawings needed to build it without introducing the errors that come from manual re-drafting.
Structural steel detailing itself is the process of preparing precise, code-compliant drawings after a project's design is finalized, so that fabrication and erection can proceed without cracks, misalignments, or deflections downstream. Software built for this purpose keeps the drafting accurate and coordinated across stakeholders, which keeps the construction schedule intact.
Advantages of software for structural steel detailing
1. Automated detailing
Detailing software generates shop drawings, fabrication drawings, arrangement drawings, and assembly drawings directly from the structural model. Because these 2D outputs come from a single accurate model rather than manual re-drafting, site execution proceeds smoothly. The drawings can also be exported to NC files for automated, error-free fabrication.
2. Lower material and labor costs
The software evaluates alternative structural arrangements that meet the same requirements at lower steel tonnage, estimates the required steel quantity, and auto-generates a bill of materials. This tightens both material costs and the labor hours spent compiling take-offs by hand.
3. Fewer errors
Manual drafting introduces mistakes wherever coordination between drawings depends on individual memory or communication. Detailing software carries geometry and connection data through every view automatically, so interferences that would otherwise be missed in 2D drawings are caught before fabrication.
4. Fewer on-site problems
A 3D steel model can be reviewed from any angle, giving site teams a clear reference for how fabricated parts should come together. Because the model — not only the drawing — can be edited directly, changes propagate through every dependent drawing, which gives the project more flexibility to absorb late-stage revisions without new errors.
5. Time savings
Detailing software ships with libraries of standard sections, materials, and codes, which removes the need to redraw or re-specify common elements for every project. Combined with automated drawing generation, this shortens the detailing cycle considerably compared with manual methods.
6. Better interoperability
Detailers can import 3D models directly from structural engineers as a starting point, and compare original and updated models without re-entering data. Because the information moves between design and detailing electronically, there is no manual re-keying step where transcription errors can enter the workflow.
7. Reliable 3D models
The 3D model is what makes precise shop drawings possible in the first place — each structural element carries its own diameter, shape, size, hole locations, and connection details. This level of definition helps prevent misalignment when steel elements are installed on site.
Where this fits for structural teams
COMOSYS is a general-purpose structural analysis, design, and detailing platform that carries a project from modeling through analysis, design, detailing, and drafting in one environment — which is what makes the advantages above practical rather than theoretical.
That is the practical case for keeping structural steel detailing on a coordinated platform rather than stitching together separate modeling, analysis, and drafting tools for the same project.
